5L stainless steel chemical laboratory reactor

Model Number:
K-type, F-type, RF/CE
Lead Time:
Quantity(Sets) 1 – 5 6 – 10 11 – 20 >20
Est. Time(days) 40 45 50 To be negotiated
Customization:
Customized logo(Min. Order: 1 Sets)
Customized packaging(Min. Order: 1 Sets)
Graphic customization(Min. Order: 1 Sets)

Shipping:
Support Sea freight
Service:
1 Year for machinery warranty|1 Year for Core Components

描述

Supply Ability
30 Set/Sets per Month
Packaging & Delivery
Packaging Details

Adopt steel frame/plywood/frame/seal boxes to fasten each main component, avoiding movable damage via transportation, and make it easier for clients to unload the cargo

Port

Qingdao/Shenzhen/Shanghai

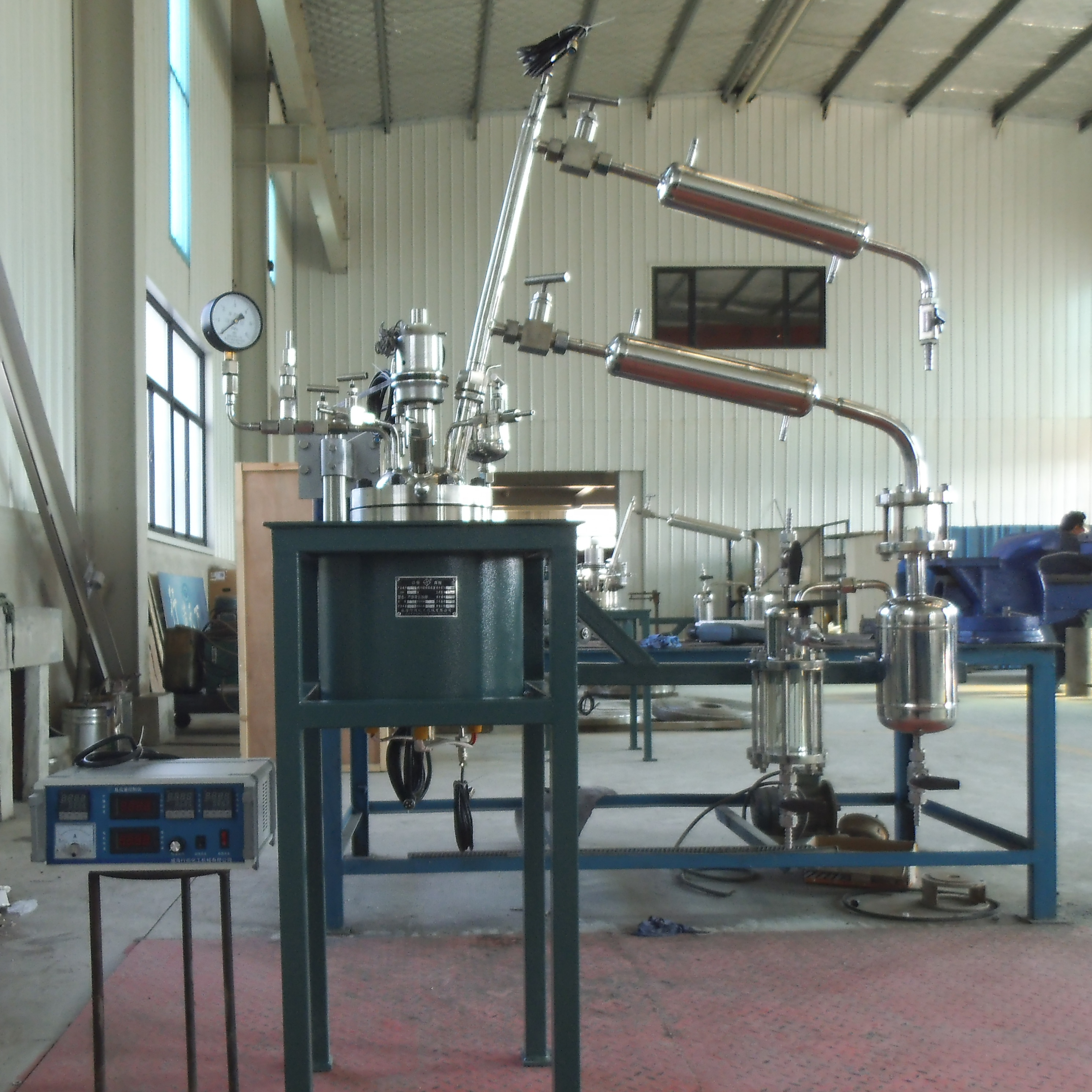

Picture Example:
Product Overview
Laboratory Reactor
The small laboratory reactor has small volume, simple and reliable structure, and digital display of temperature setting , It is equipped with miniature DC motor, pressure gauge, explosion-proof device, intake valve, sampling valve, temperature probe, which can easily realize the micro reaction experiment.
FEATURES AT A GLANCE
1、The stirring paddle and the kettle cover adopt static sealing, magnetic sealing, stable transmission, quietness and good sealing performance.
2、The design pressure: -0.1MPa~100MPa
3、The design temperature: -196~500℃
4、The stirring speed: 0~750rpm

Water heating or cooling
Oil heating or cooling
Steam heating or cooling
PRODUCT SPECIFICATIONS
Agitator type
Paddle/Impeller/Frame/Turbine/Anchor(According to clients requirements)
Motor power
123W/185W/355W/750W
Heating type
Resistance furnace heating,  far-infrared heating,  jacket heat conduction oil electric heating,  jacket circulation heating,  electromagnetic induction heating
Head type
Quick open type/Flange type
Cooling coil
U type/Snack plate type
Basic mouth configuration
Air inlet hole, vebt hole, solid inlet hole, inner coil inlet and outlet hole, pressure hole, temperature hole, liquid hole
Voltage
220V/380V/440V
Discharge valve
Exhibition valve/ ball valve/ wire plug
Controller
PID intelligent controller, automatically adjust temperature control parameters
PRODUCT CONFIGURATION
Explosion proof motor
Tank mouth
Temperature controller
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q: Are you trading company or manufacturer ?
A: Tanglian is a professional manufacturer.
Q: How could we confirm the details of the products?
A: Tanglian have technical department, accurate drawing will be provided to you to confirm.
Q:What’s your delivery time ?
A:Generally it is 35-45 days after received the deposit and confirmed the drawing.
Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.
Q:How long the warranty will be?
A: 1 year warranty.
Q:How about the installation?
A: Before shipment, equipment will be installed and debugged by our installers. After arrived, online support will be provided.
