Glass lined pipe type condenser

Product Description

		Heat Exchange Area(㎡)Nominal value/Calculated value					Flow Speed(m³/hr)
Nominal Diameter(mm)	Tubes Quantity	Tubes Length(mm)
Nominal Diameter(mm)	Tubes Quantity	1500	2000	3000	4000	6000
DN159	14	1.5/1.62	2/2.17	3/3.27			7.92/8.82
DN219	26	3/3.00	4/4.02	6/6.06	8/8.11		14.76/16.20
DN273	44	5/5.08	7/6.81	10/10.26	14/13.72	21/20.63	24.84/27.36
DN325	60	7/6.93	9/9.28	14/14.00	19/18.71	28/28.13	33.84/37.44
DN400	110	13/12.7	17/17.02	26/25.66	31/34.20	50/51.68	31.14/34.20
DN500	180			40/41.99	55/56.12	85/84.40	50.94/56.16
DN600	269			60/62.7	85/83.88	125/126.13	152.10/167.76
DN700	358			85/83.51	110/111.62	165/167.86	101.16/111.60
DN800	488			115/113.83	150/152.16	230/228.81	138.06/152.10
DN900	630			145/146.96	195/196.44	295/295.40	178.20/196.38
DN1000	792			185/184.75	245/246.95	370/371.36	223.92/246.96

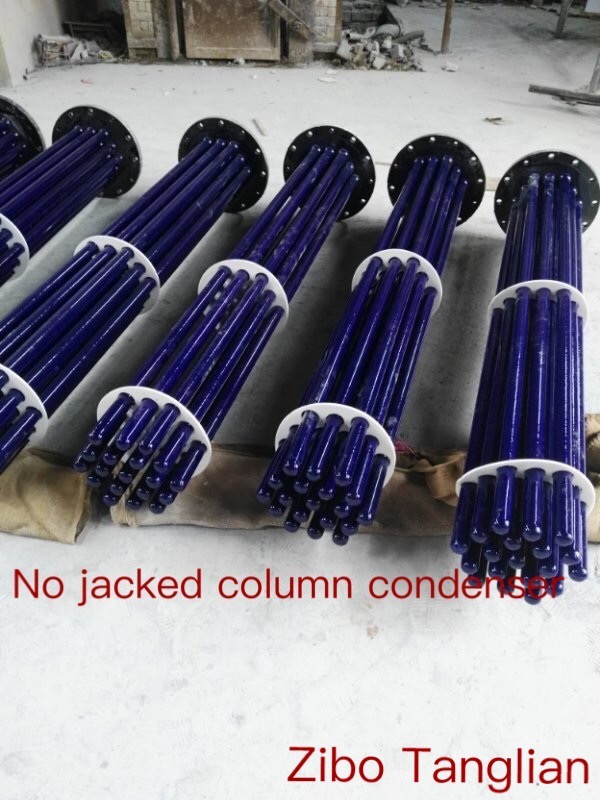

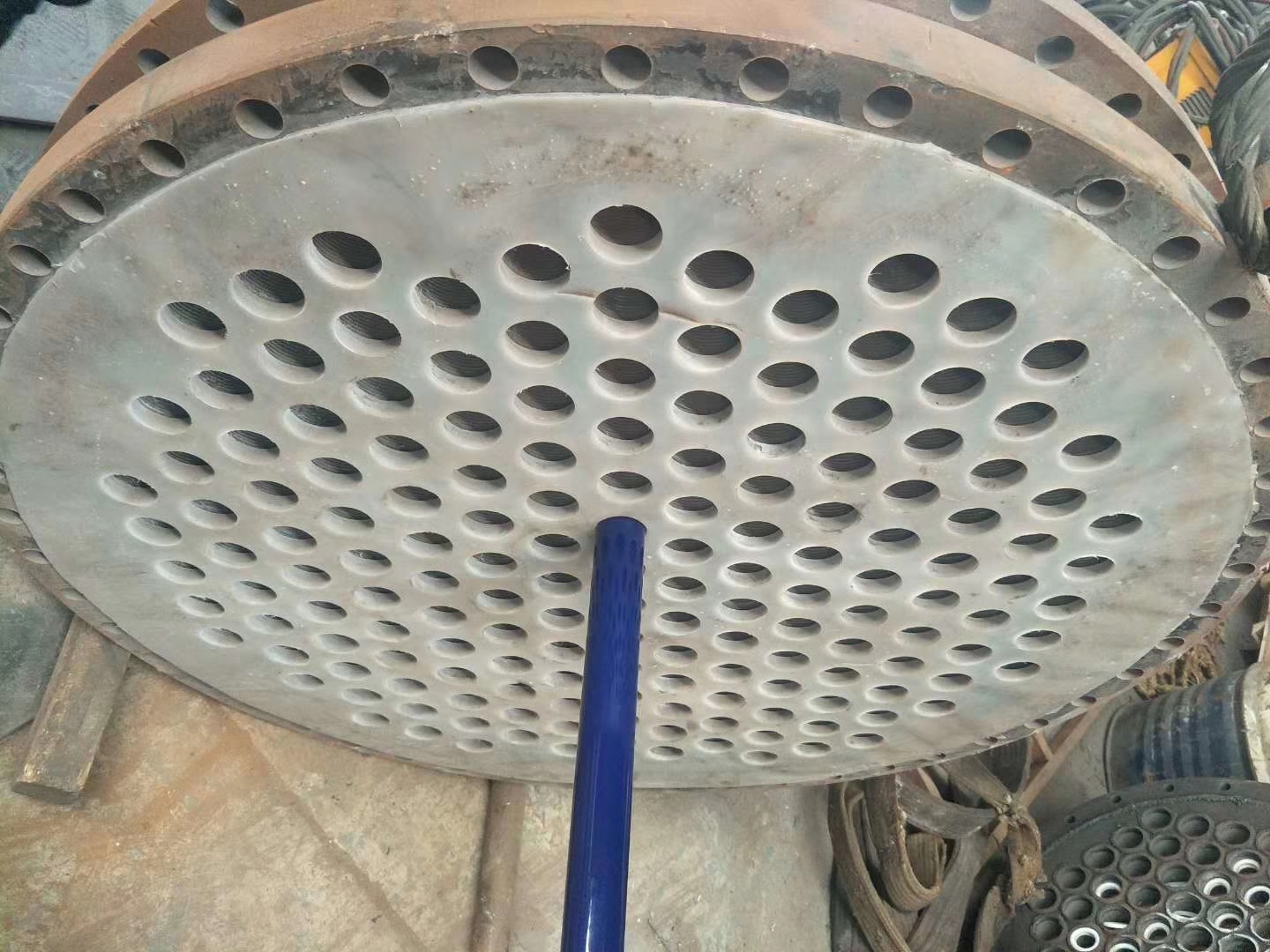

Detailed Images

1.The structure is simple, the price is low, the bearing capacity is strong, and the thermal stress will not be generated.

2. It is particularly suitable for cleaning high-temperature, high-pressure, corrosive materials that are not easy to scale in the pipe.

Related Products

Packing&Shipping

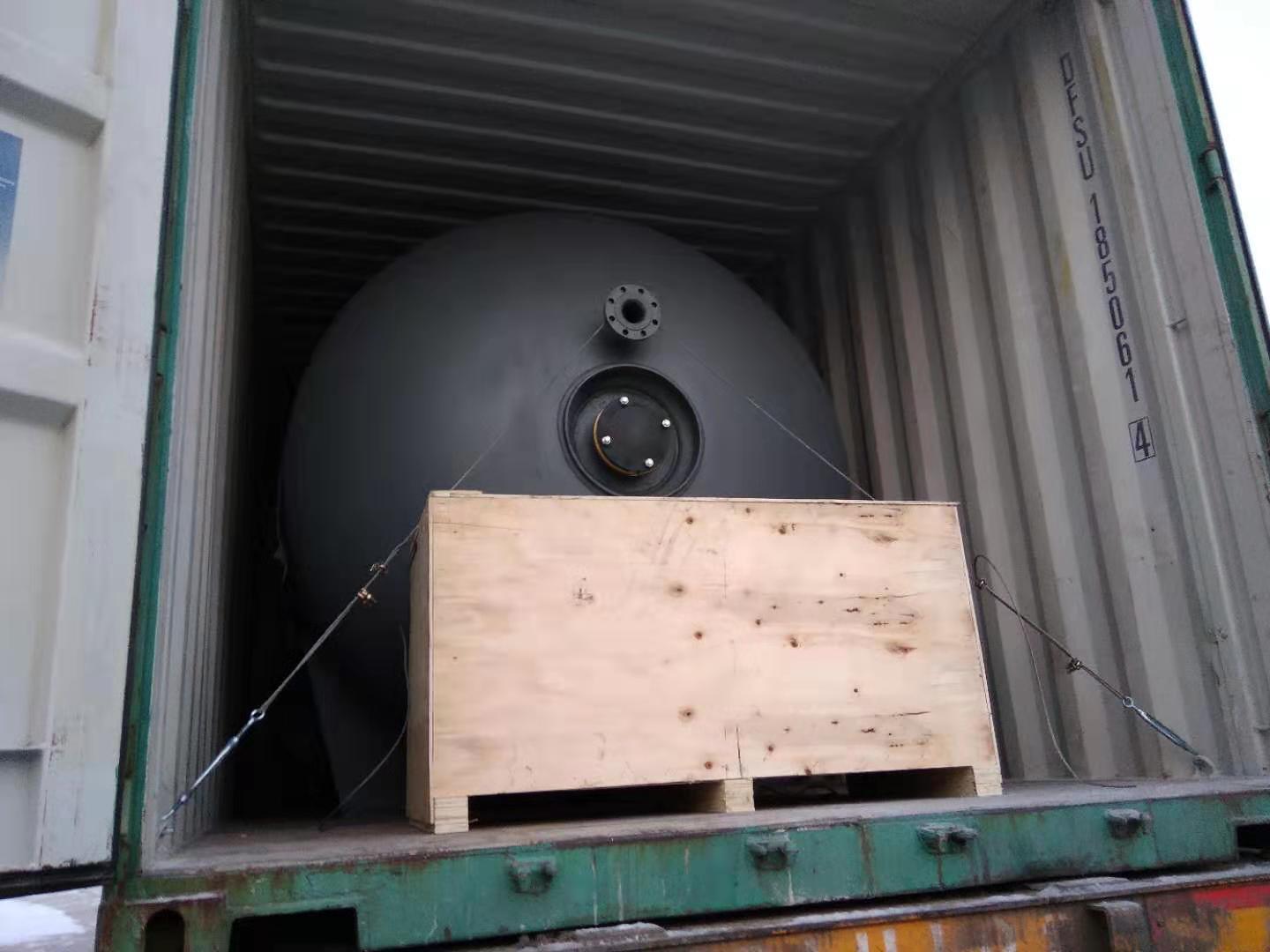

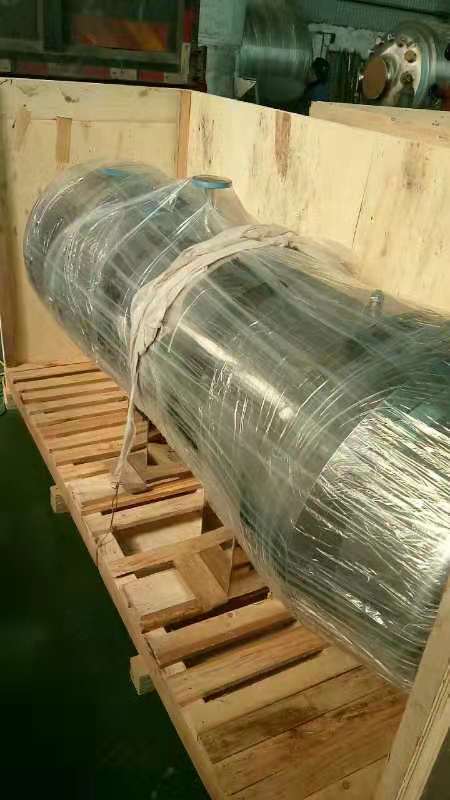

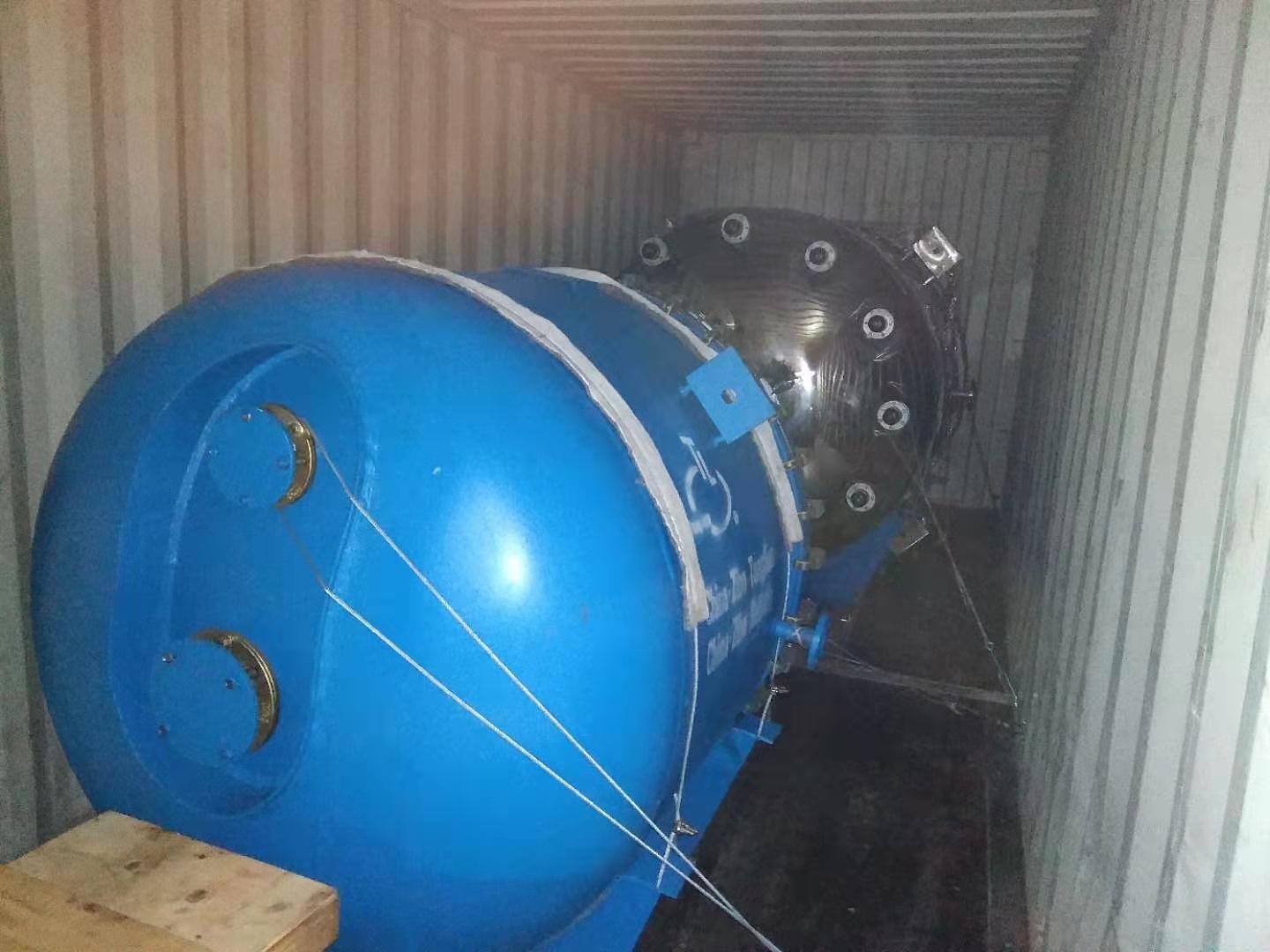

Adopt steel frame/plywood/frame/seal boxes to fasten each main component, avoiding movable
damage via transportation, and make it easier for clients to unload the cargo.

After Sales Service

1. Professional technical support

2. Analysis demands of clients

3. Design and manufacture customized equipment according to clients requests.

4. Approved drawing for client confirmation.

Company Introduction

Shenzhen onetouch trading company is a wholesale company that manufactures good & high quality knitting wear and woven wear, starting from 2006. The company provides the customized products and OEM service. Various new collections and design are coming out each month with the current styles and fabrics. The factory own the proficient skill and updated machine

Our Services & Strength

Professional R&D and technical department can supply the approved production drawing. Before shipment, equipment will betested, installed and debugged.

FAQ

Q: Are you trading company or manufacturer ?
A: Tanglian is a professional manufacturer.

Q: How could we confirm the details of the products?
A: Tanglian have technical department, accurate drawing will be provided to you to confirm.

Q:What’s your delivery time ?
A:Generally it is 35-45 days after received the deposit and confirmed the drawing.

Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.

Q:How long the warranty will be?
A: 1 year warranty.

Q:How about the installation?
A: Before shipment, equipment will be installed and debugged by our installers. After arrived, online support will be provided.
