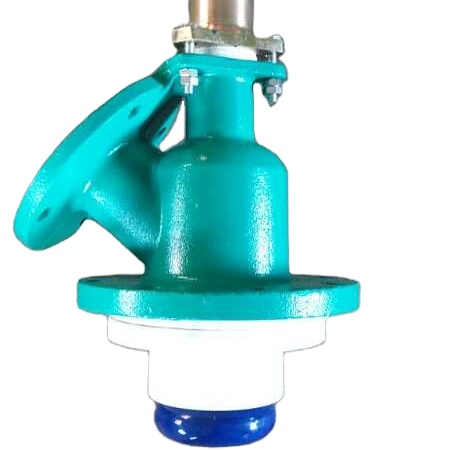

Glass lined temperature measuring valve

Lead Time:
Quantity(Sets) 1 – 5 6 – 10 11 – 20 >20
Est. Time(days) 40 45 50 To be negotiated
Customization:
Customized logo(Min. Order: 1 Sets)
Customized packaging(Min. Order: 1 Sets)
Graphic customization(Min. Order: 1 Sets)
Shipping:
Support Sea freight · Air freight
Service:
1 Year for machinery warranty|1 Year for Core Components

描述

Supply Ability
30 Set/Sets per Month
Packaging & Delivery
Packaging Details

Adopt steel frame/plywood/frame/seal boxes to fasten each main component, avoiding movable damage via transportation, and make it easier for clients to unload the cargo

Port

Qingdao/Shenzhen/Shanghai

Picture Example:
Product Description
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Inner Vessel
Design Pressure(MPa)
0.4MPa
Design Temperature(℃)
200℃
Operation Temperature(℃)
0-180℃
High-Tension Test
20KV
Glass Coating Thickness
0.8-2.0mm

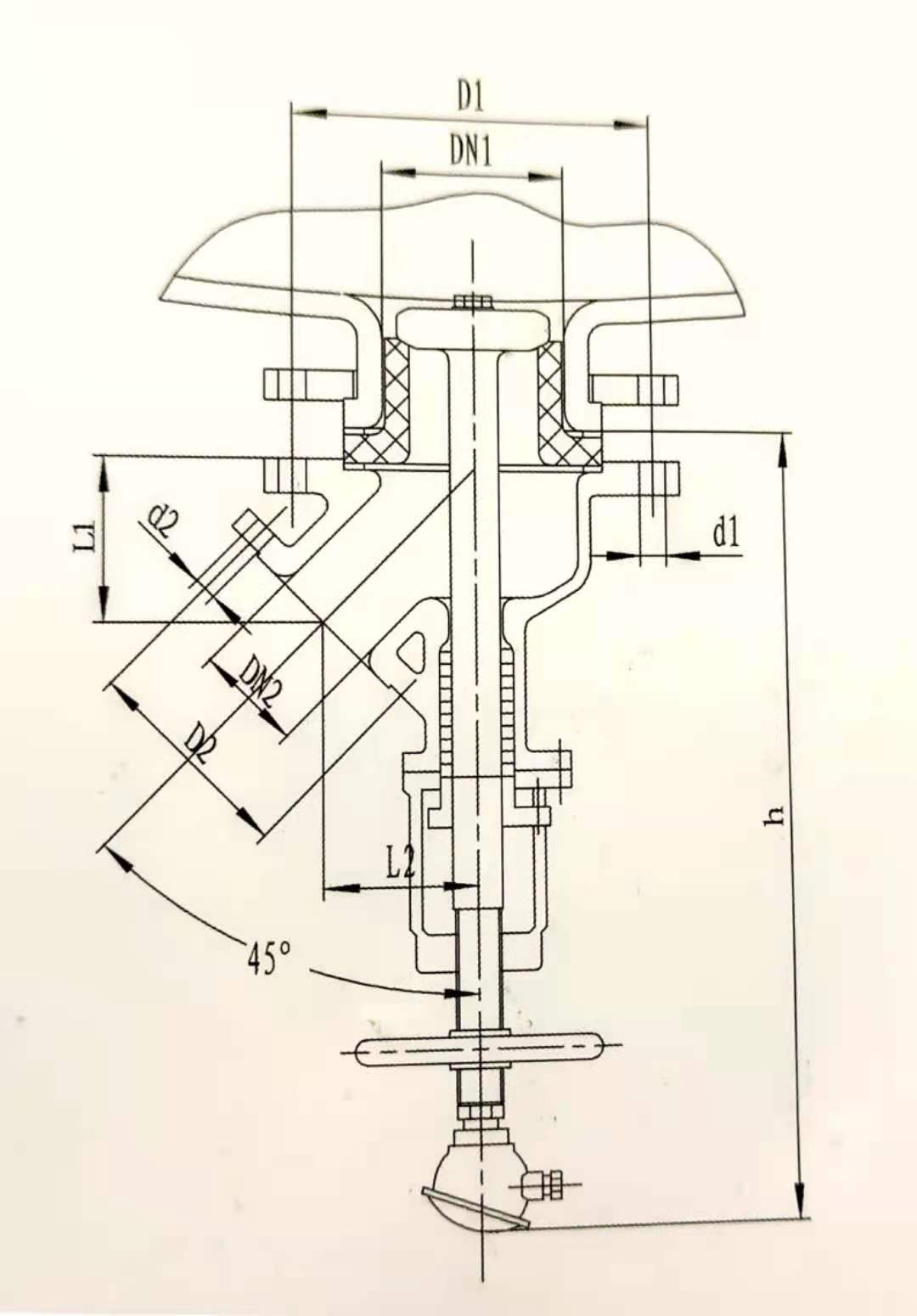

  • The dimension of the valve

DN1/DN2   65/32  80/40  100/50  125/80 150/100

D1 130 150 170 200 150
D2 90 100 110 150 170
d1 4*14 4*18 4*18 8*18 8*18
d2 4*14 4*14 4*14 4*18 4*18
L1 75 80 90 110 118
L2 80 85 90 115 120
h 368 375 415 465 605
Packing&Shipping
Delivery & Transportation

All delivery terms are available: EXW, FOB, CIF, CFR, DAF, DDP, CIP, etc.
Shipped in 35-45 days after the deposit confirmed.Delivery & Transportation
All delivery terms are available: EXW, FOB, CIF, CFR, DAF, DDP, CIP, etc.

Packing:

The glass coating in the glass lined reactor is easy to damage, the wood pier used to fix reactor, then fasten it around with a rope so that it can’t shake, and finally pack it up with wooded box.

After Sales Service
Our Service

1. User Demand Analysis

Once the project is confirmed, the product level, processing technology and consulting group are analyzed according to the actual
demands of customers so as to provide suitable enfineering plans, form a complete production line and calculate the budget.
2.Technical Design
Customize accurate drawing can be supply.
3. Product Manufacturing
The approved production drawing is the basis for production and manufacturing. All equipment that is not manufactured on the site shall be indentified by our quality responsible person so as to meet the strict stipulations. The regular inspection can ensure
the suppliers also meet the quality standard as stipulated.
Company Introduction
Here is a brief on us:

Since 1998, with 20+ years of manufacturer experience
Four plants covering 50,000 square meter area
Accurate technical approval can be supplied by professional technical department, 150+ employees professional service

FAQ
Q:Are you manufacturer or trading company?

A:Tanglian is a professional manufacturer.
Q: Where is your factory located?
A:Our factory is located in Hongshan industry park, Zichuan District, Zibo, Shandong.
Q:How could we confirm the details of the products?
A:Tanglian will provide all the drawings for your confirmation.
Q: Will you charge us for drafting if we have special requests?
A:No, we will not. Free of charge to make a draft or offer.
Q:How long the warranty will be?
A: 1 year warranty.
Q:How about the installation?
We will install and debug the reactor before shippment. And on-line service will be provided.
