Stainless steel chemical reactor with upper flat head

Lead Time:
Quantity(Sets) 1 – 5 6 – 10 11 – 20 >20
Est. Time(days) 40 45 50 To be negotiated
Shipping:
Support Sea freight
Service:
1 Year for machinery warranty|1 Year for Core Components
Category: Tag:

描述

Supply Ability
1500 Set/Sets per Year
Packaging & Delivery
Packaging Details

Adopt steel frame/plywood/frame/seal boxes to fasten each main component, avoiding movable damage via transportation, and make it easier for clients to unload the cargo

Port

Qingdao/Shenzhen/Shanghai/Tianjin

Picture Example:
Video Description

00:04

00:04

Product Overview
Stainless steel mixing reactor
Stainless steel widely used in petroleum, chemical industry, rubber, pesticides, dyes, medicine, food, to complete sulfur, nitration, hydrogenation, alkylation, polymerization, condensation and other processes
FEATURES AT A GLANCE
1. The heat resistance is good, the working temperature range is very wide, (-196-600 degrees), it will not oxidize and peel at higher temperature.
2. The heat transfer effect is better than that of the glass lined reactor, and the heating and cooling speed is faster
3. Alkali corrosion resistance

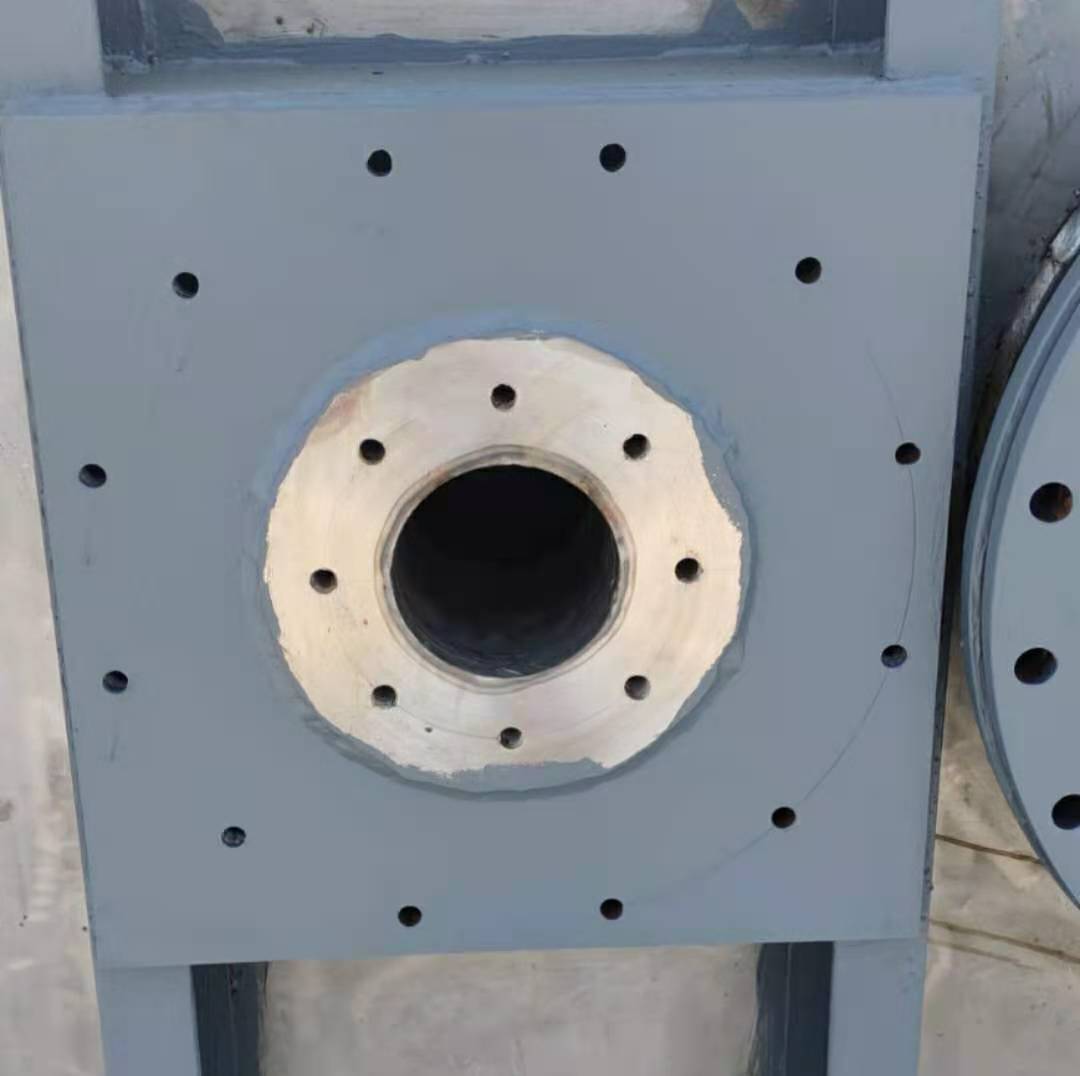

Flange stirring mouth

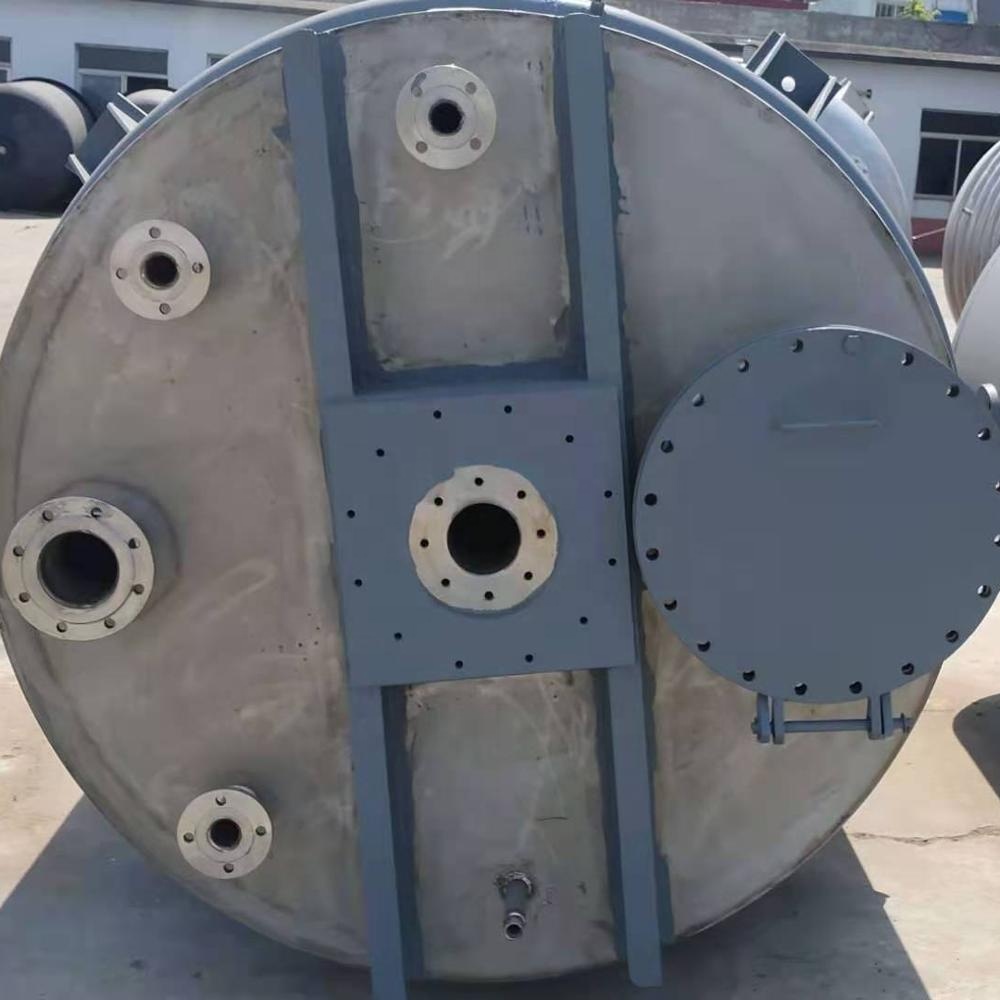

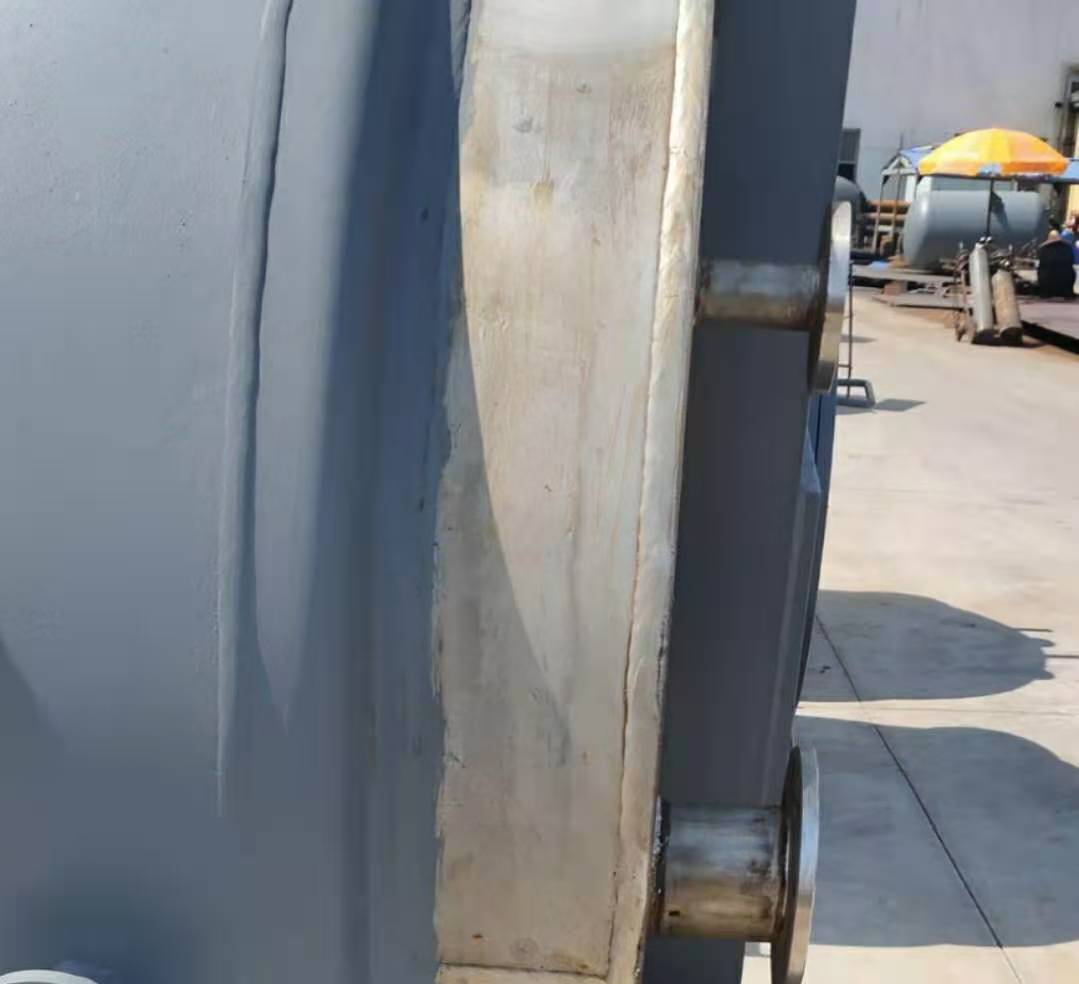

Flat head weld
Quick open manhole
PRODUCT SPECIFICATIONS
No
Item
Spec.
1
Nominal capacity
4000L
2
Full capacity
4340L
3
Weight
4416Kg
4
Seal type
Single and double mechanical seal
5
Design pressure
-0.1~0.6MPa(-1bar~6bar)
6
Design temperature
≤600℃
7
Heating and cooling type
Jacket/outer half tube/inner coil/ electric
PRODUCT CONFIGURATION
Double layers turbine type agitator

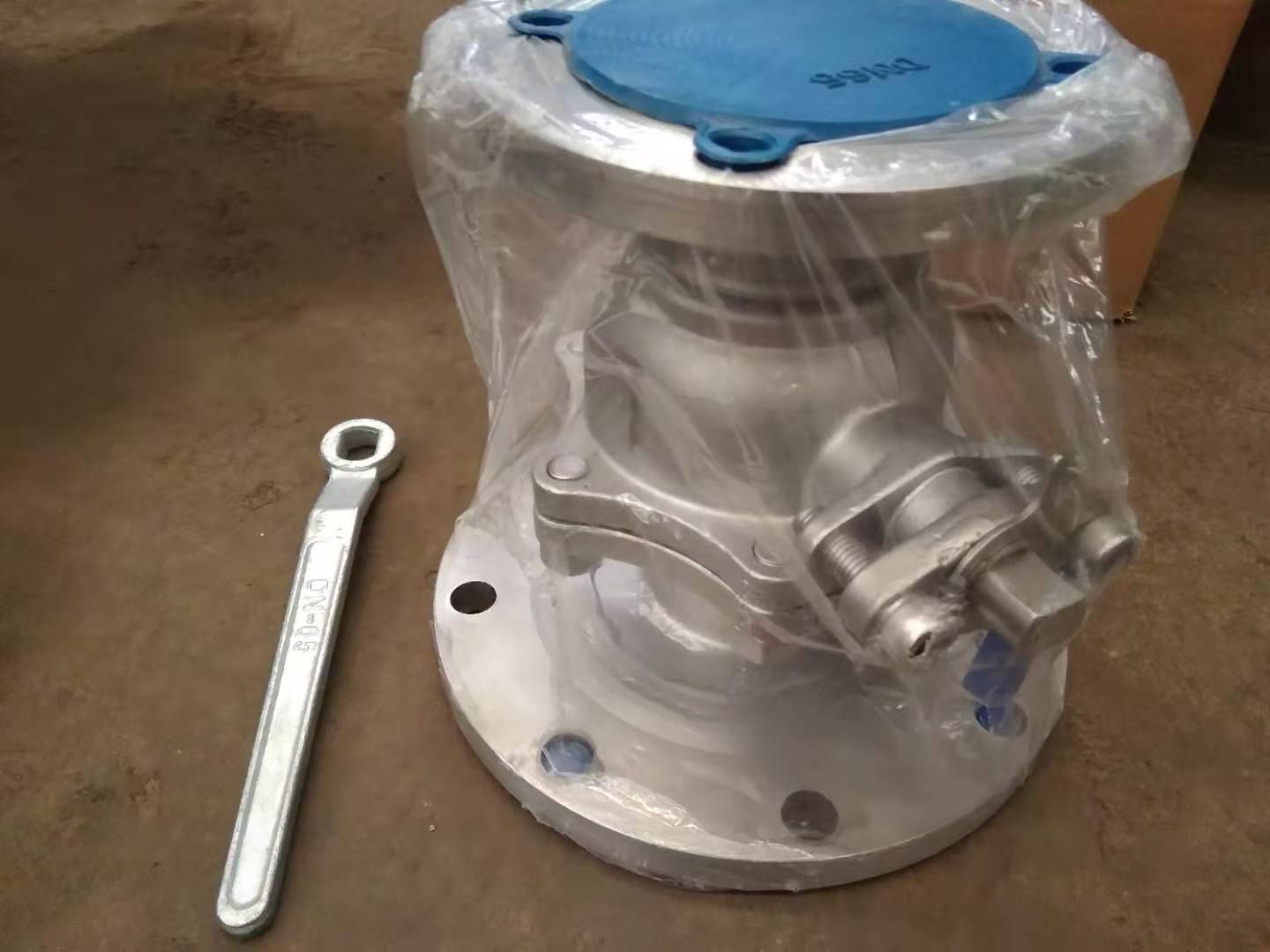

Stainless steel ball valve

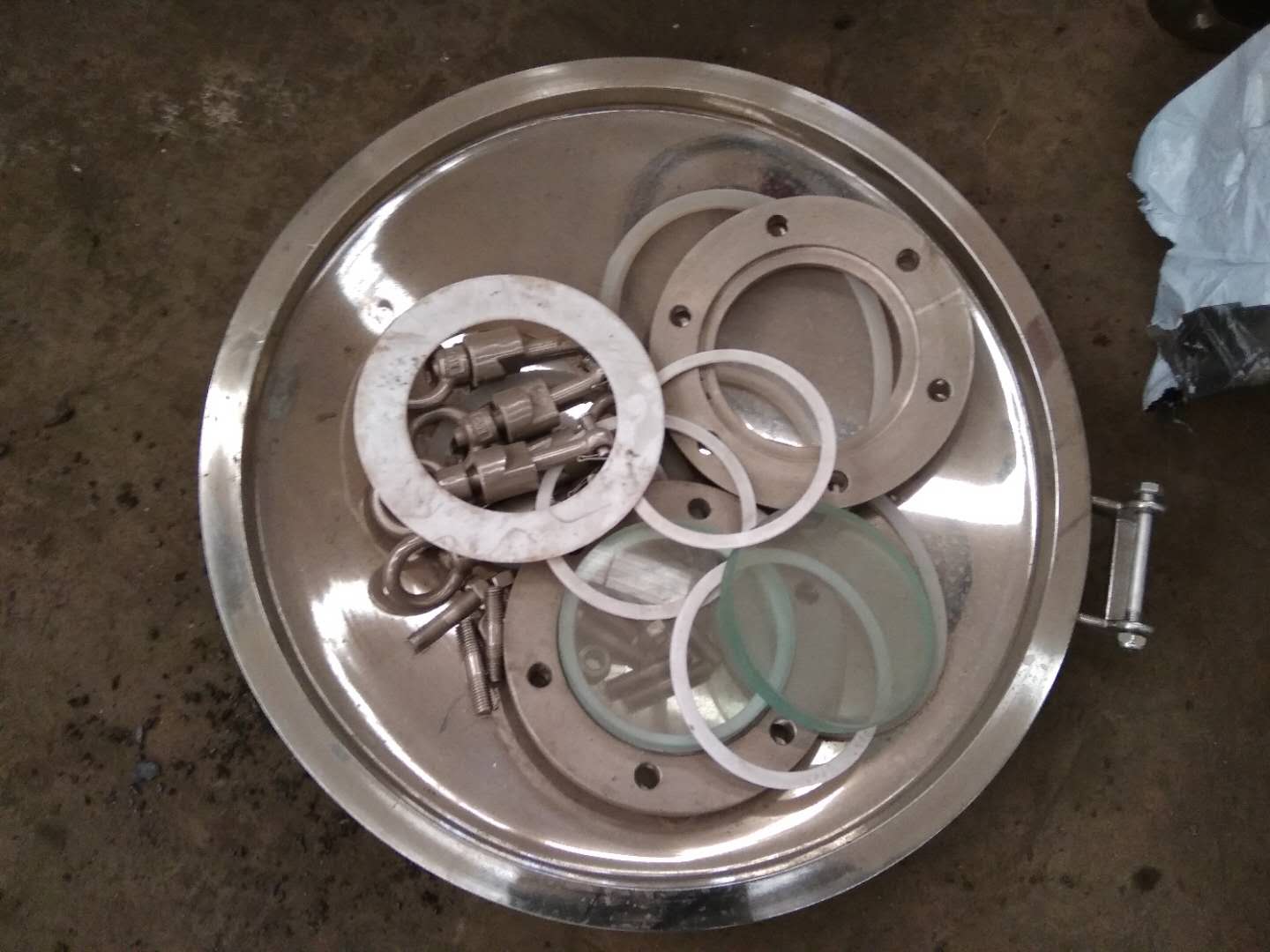

Sight glass and PTFE gasket
SALES AND SERVICE NETWORK

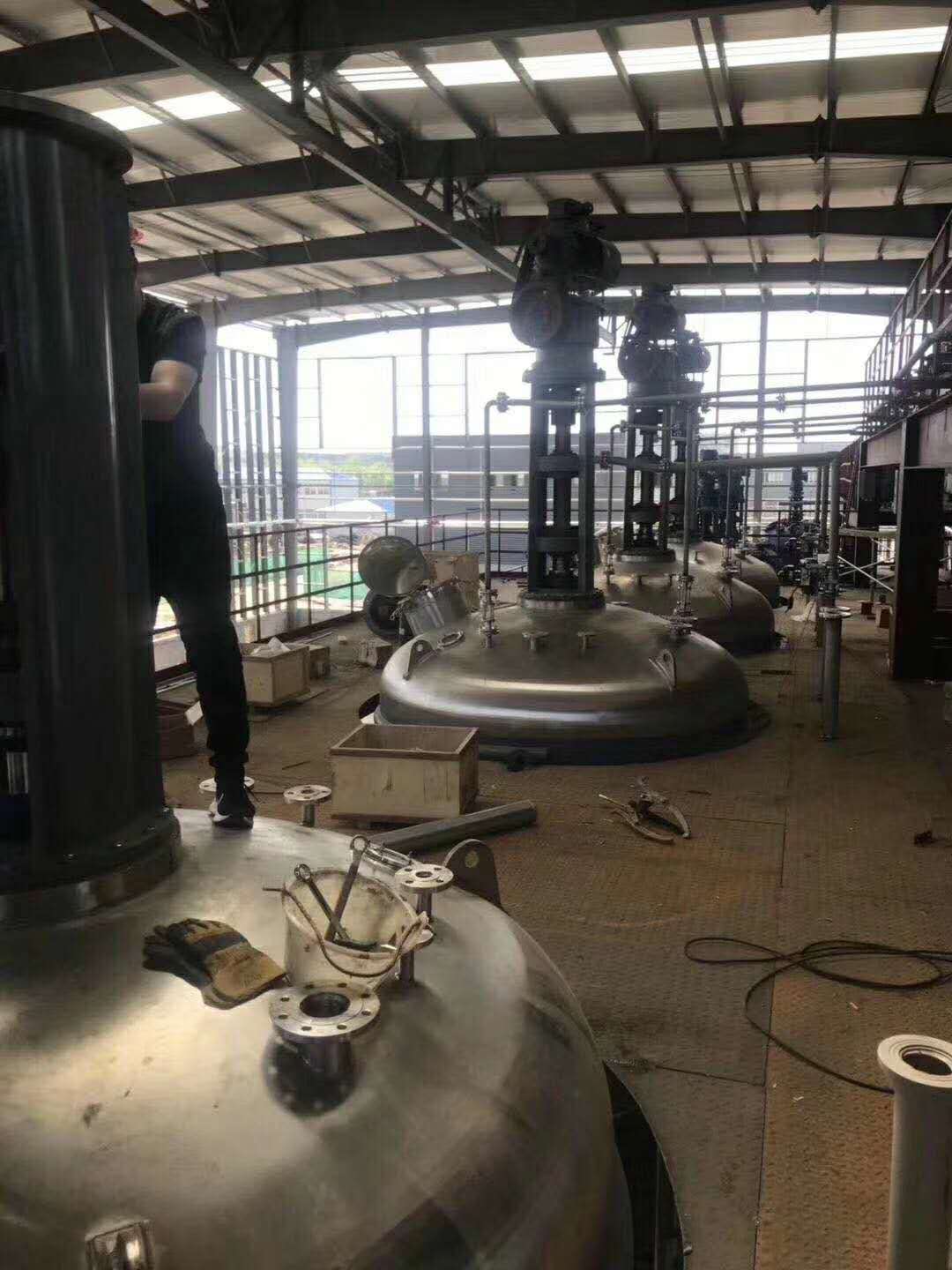

Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q: Are you trading company or manufacturer ?
A: Tanglian is a professional manufacturer.

Q: How could we confirm the details of the products?
A: Tanglian have technical department, accurate drawing will be provided to you to confirm.

Q:What’s your delivery time ?
A:Generally it is 35-45 days after received the deposit and confirmed the drawing.

Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.

Q:How long the warranty will be?
A: 1 year warranty.

Q:How about the installation?
A: Before shipment, equipment will be installed and debugged by our installers. After arrived, online support will be provided.
